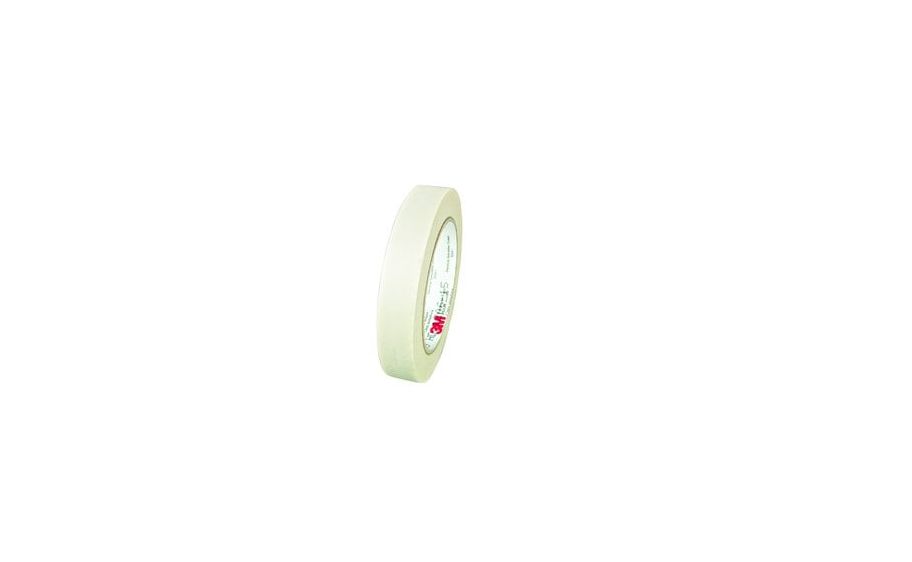

3M™ Glass Cloth Electrical Tape 69, 1 X 66 ft, Bulk, 1-in paper core, 36 Rolls/Case
1
/
RL
Lead Time
12 Day(s)
SKU
3M7000132834-RL
MFRPN
7000132834
3M™ Glass Cloth Electrical Tape 69 is a white, 0.178 mm (7-mil) thick tape composed of a 0.140 mm (5.5-mil) glass cloth backing coated on one side with a non-corrosive, high-temperature, flame retardant, thermosetting silicone pressure-sensitive adhesive.
3M™ Glass Cloth Electrical Tape 69 features a pressure sensitive, high temperature, thermosetting, silicone adhesive. It is commonly used in UL applications rated up to 600 volts in dry locations and in a variety of coil/transformer and motor applications including as an outer wrap for bobbin wound coils, banding arbor wound coils, lead pad hold-down, end turns and lead anchor and connections. UL recognized and 200°C (392°F) temperature rated. CSA certified and 180°C (356°F) temperature rated. RoHS Compliant and QPL Listed - QPL-19166 pre MIL-I-19166
| Manufacturer | 3M |
|---|---|
| Brand | 3M™ |
| MFRPN | 7000132834 |
| Additional Part Numbers | 80611087059 |
| Lead Time | 12 Day(s) |
| UNSPSC Code | 31000000 |
| Country of Origin | United States |
