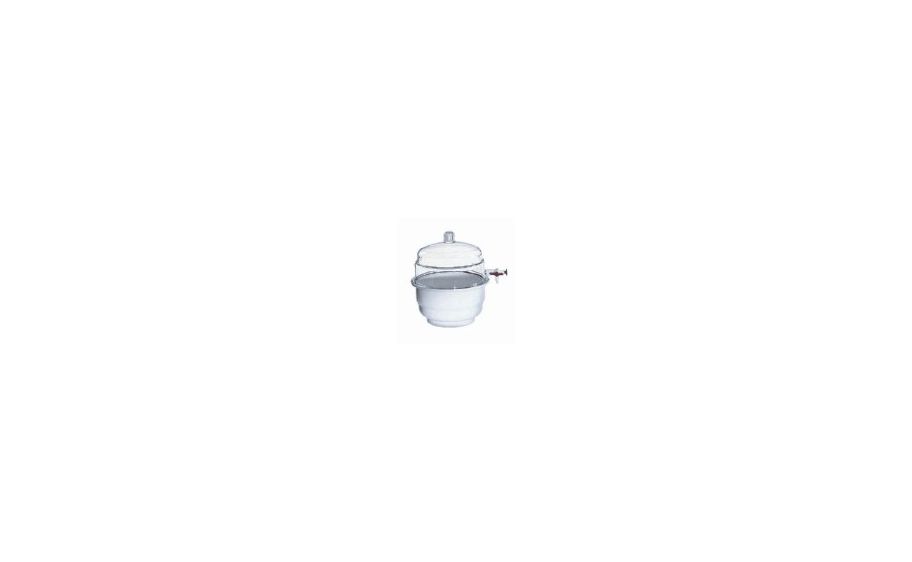

Plastic Vacuum desiccator, 140 mm plate size
1
/
EA
Lead Time
26 Day(s)
SKU
CPEW-06514-10-EA
MFRPN
420100000
DESICCATOR VACUUM 140MM PLATE
Deep vacuum desiccator features a polypropylene bottom and polycarbonate lid|High crowned lid provides maximum interior clearance|Desiccator holds 29" Hg for 24 hours|Large interior volume -- The space saving design of the desiccator dome provides maximum interior clearances. They provide an average of 13% greater interior volume than standard hemispherical domes. Extra heavy walls -- Clear polycarbonate top and choice of white polypropylene or polycarbonate bottom. This strong, shatterproof desiccator will hold a full vacuum (29.9" Hg [759mm]) at room temperature for 24 hours and will remain air tight even if not under vacuum. Featuring
A polypropylene stopcock with a PTFE TFR plug which turns, allowing a slow, gentle entrance of air preventing unnecessary turbulence and crucible damage. The stopcock handle is a highly visible red and has a port which accepts 1/4" (6.4mm) I.D. tubing. A large ribbed knob at the top center for easy lifting. A Neoprene O-ring seal which does not require grease, but is not harmed if grease is used. A polypropylene plate 3.2 mm (1/8") thick with 3.2mm (1/8") diameter perforations for air transfer. The plate rests on the retaining ledge of the bottom section and has a center hole for easy removal. Choice of Bottom Section: Polypropylene provides excellent chemical resistance and permits the use of incandescent crucibles with standard size procelain plates. All clear Polycarbonate bottoms are available in the same sizes.
A polypropylene stopcock with a PTFE TFR plug which turns, allowing a slow, gentle entrance of air preventing unnecessary turbulence and crucible damage. The stopcock handle is a highly visible red and has a port which accepts 1/4" (6.4mm) I.D. tubing. A large ribbed knob at the top center for easy lifting. A Neoprene O-ring seal which does not require grease, but is not harmed if grease is used. A polypropylene plate 3.2 mm (1/8") thick with 3.2mm (1/8") diameter perforations for air transfer. The plate rests on the retaining ledge of the bottom section and has a center hole for easy removal. Choice of Bottom Section: Polypropylene provides excellent chemical resistance and permits the use of incandescent crucibles with standard size procelain plates. All clear Polycarbonate bottoms are available in the same sizes.
| Manufacturer | Bel-Art Products |
|---|---|
| MFRPN | 420100000 |
| Lead Time | 26 Day(s) |
| UNSPSC Code | 41120000 |
| Country of Origin | United States |
