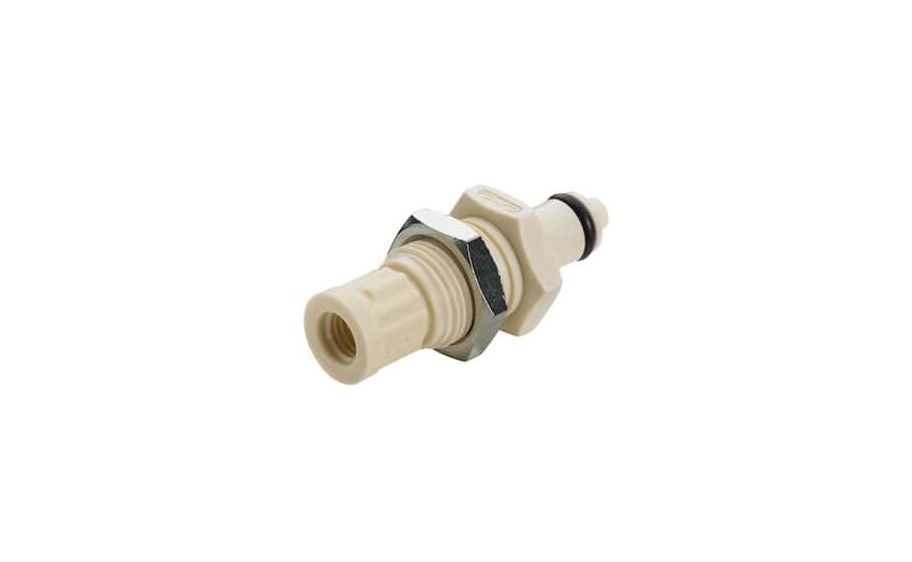

Quick-Disconnect Fittings, Thread Insert, Panel Mount, Valved, Polypropylene, 1/4-28 UNF(F); 1/Each

Resistant to most chemical solutions|Ideal for general purposes, laboratory, and single-use applications to connect tubing with the rest of your system|Free technical application support is available to determine which connector type is needed for your application|Ergonomic design makes it easy to connect and disconnect fittings quickly|Ideal for tubing sizes from microbore to 1/4 ID|Chemical resistance|Gamma Sterilizable|1/4-28 UNF(F)|The CPC (Colder) PLCD Series quick disconnect threaded UNF(F) body and insert fittings have a 1/8" flow size, making them suitable for a wide range of general-purpose and chemical applications. The fittings feature an automatic shutoff spring-operated stainless-steel valve which closes and seals the fluid pathway upon decoupling, protecting the sterility on each side of the system. Constructed of polypropylene, the panel mount fittings with a -28 flat bottom port, provide enhanced chemical resistance, making them ideal for harsher environments. An ergonomic thumb latch enables effortless one-handed connection and disconnection, even when wearing gloves. These fittings can withstand pressures ranging from vacuum to 120 psi (8.3 bar) and operate effectively within a temperature range of 32 to 160 F (0 to 71 C).
